3PEAK Unveiled Single-Channel 16-Bit/18-Bit SAR ADCs, with Breakthroughs in Converter Segmentation

2023-03-14

3PEAK (stock code: 688536), a semiconductor company focusing on the development of high-performance analog chips and embedded processors, has recently unveiled the 16-bit single-channel fully differential SAR ADC — TPC5160, 16-bit single-channel pseudo-differential SAR ADC — TPC5161, and 18-bit single-channel fully differential SAR ADC— TPC5180. These products adopt SPI communication and support the daisy-chain multi-channel cascade mode. With an operating temperature ranging from −40°C to +125°C, these products are widely used in data acquisition, instruments, industrial automation control, automatic test equipment, medical equipment, and other fields.

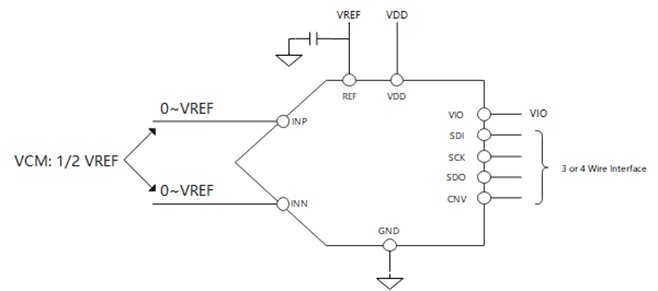

Differential Input SAR ADC

• TPC5160 (16bit)
• TPC5180 (18bit)
• High Throughput Speed
• TPC5160 (600kSPS)
• TPC5180 (300kSPS)
• No Pipeline Delay
• Single Analog Power Supply: VDD 4.5V~5.5V
• Flexible Logic Interface Level: VIO 1.8V~5.5V
• REF Input Range: 2.5V~VDD
• Input Differential Voltage Range: ±VREF
• Input Common Mode Voltage: 1/2 VREF ±0.1V; SPI Communication: Support DAISY-CHAIN Cascade
• SPI Speed: 65MHz
• Small Package: MSOP10
• Wide Operating Temperature Range: -40°C to +125°C

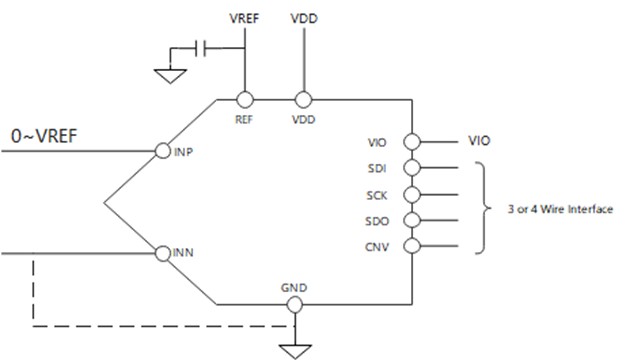

16bit SAR ADC with Pseudo Differential Input

• High Throughput Speed: 600kSPS
• No Pipeline Delay
• Single Analog Power Supply: VDD 4.5V~5.5V
• Flexible Logic Interface Level: VIO 1.8V~5.5V
• REF Input Range: 2.5V~VDD
• Input Voltage Range: 0~VREF
• SPI Speed: 65MHz
• Small Package: MSOP10
• Wide Operating Temperature Range: -40°C to +125°C
